Automatic acid etched glass line is suitable to produce all kinds of acid etched glass,non-finger print acid etched satin glass.Our machinery is totally automatic,Only one worker will handle the full line.It's high efficient,No coating the glass back side,It can produce max 5000 square meters per day.Our acid etched glass machinery is energy saving,environtmental friendly,The water is recycling.

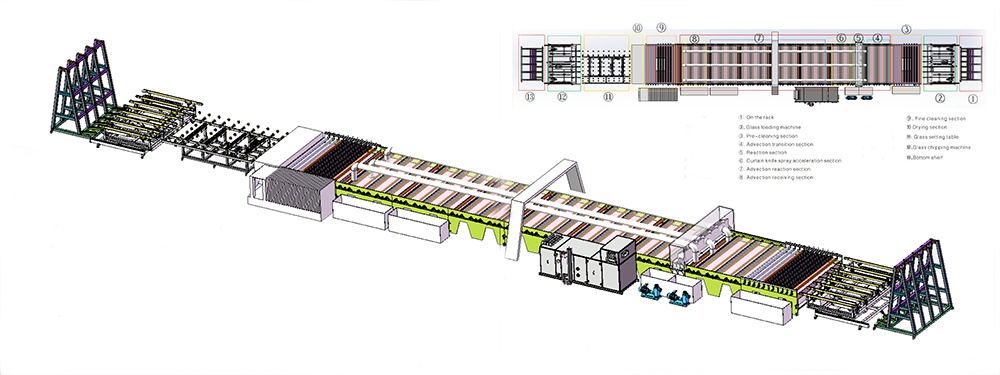

Our horizontal automatic acid etched satin glass machinery uses the latest technology, through technical control, acid chemical products on the glass surface chemical reaction, and finally get acid corrosion coated glass, making the glass surface more smooth and delicate, and It's non fingerprints.
Our equipment is environmentally friendly and at the same time high yield machines with a maximum output of 650 square meters per hour.The glass thickness can be processed from 2-19mm

Model No.	Dimension	Power	Max Glass Width	Capacity	Glass Thickness	Min Glass Size
HD2000	40000*2800*2000mm	45KW	2000mm	100-120pcs/h	2-19mm	1000*1000mm
HD2500	52000*3150*2000mm	75KW	2500mm	60-70pcs/h	3-19mm	1000*1000mm
HD2800	58000*3250*2000mm	80KW	2800mm	60-70pcs/h	3-19mm	1000*1000mm
