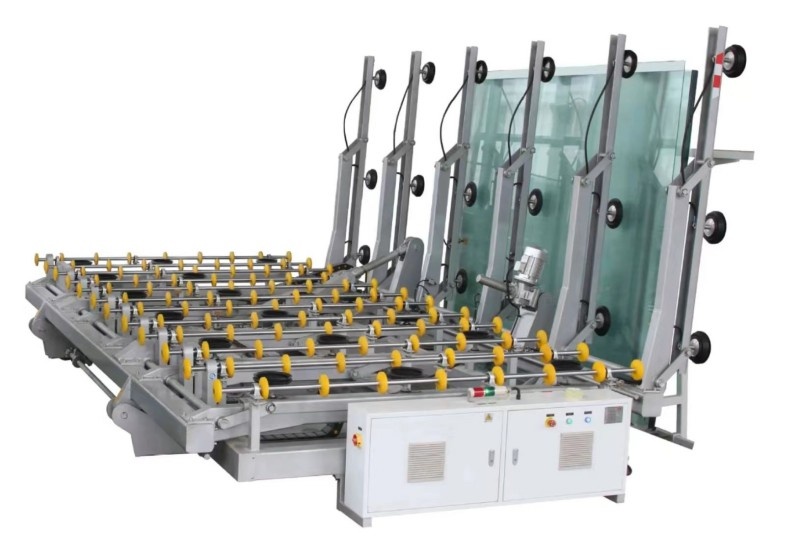

Automatic glass loading and unloading machinery to achieve automatic glass loading, automatic accurate positioning, transmission, after the glass processing is completed, automatic accurate positioning, transmission, automatic unloading. The upper and lower pieces of glass are accurate, standardized, fast, safe and efficient, and the whole process requires no manual assistance.

Advantages:
1, save floor space, and can be customized according to customer workshops;
2, full servo motor drive system, quick response, stable and efficient;
3, high-power turnover motor, fast and stable;
4, the suction cup with vacuum safety system, can automatically identify the size of the glass to control the work of each suction cup, no need to manually open and close the vacuum valve;
5, large size operation panel, simple and convenient operation;
6, the operating system program is mature and stable, to achieve unmanned operation;
7, the equipment model is complete, to meet the various needs of different customers, and can be customized according to different needs of users.

Applications:
Double ground glass production line, screen printing production line, coating production line, mirror glass production line, frosted glass production line, glass cutting production line, acid etched glass production line and so on.

Model No.	Dimension	Power	Max Glass Width	Glass Thickness	Capacity	Min Glass Size
HD2000	2300*1900*1000mm	6.8KW	2000*2500mm	3-19mm	120pcs/h
HD2500	3300*2800*1000mm	7.5KW	2500*3700mm	3-19mm	100pcs/h
